Ambulance

Het moet overal en altijd werken.

When seconds can save a life, the importance of a reliable mobile power system cannot be underestimated. The power system should never become a distraction for the medics, it simply needs to work anywhere, anytime, every time. The system needs to be prepared for worst case scenarios and prevent power issues wherever possible.

It is these high demands that drive our engineers to deliver solutions that keep performing, no matter what. 45 years of innovation and problem solving may have led us to become the global market leader in the power supply for ambulances, but it has never changed who we are. On the contrary, it is an inspiration for us to create ever better power solutions that are driven by know-how.

Als energie kan

red levens

Ambulances come in many shapes and forms. Victron Energy has a modular system with components that allow ambulance builders to build a complete system, for the exact specifications and budget. For now, let’s assume we’re designing for an average size ambulance.

Dagelijks energieverbruik

1800 Wh

Peak power requirement

1500W

In dit voorbeeld

The daily energy consumption is calculated by adding up the sum of all consumers X how much time they will be used in a day. Add all the Watts of the simultaneously used consumers to calculate the required peak power.

Voor de hand liggende keuzes

Systeem Ontwerp

Overwegingen

Onderstaand enkele van de belangrijke principes van ontwerp uitgelegd, klik op de vragen voor de aanbevelingen van onze technici

  • 01

    Welke (maat) omvormer is een betrouwbare en compacte oplossing?

    Our best-in-class inverter/chargers have powered the most demanding challenges for many years.
    The Multiplus range is the best choice when both inverting and shore power charging are required. The Pure Sine Wave technology safely powers sensitive electronics such as computers and any load problem free. The UPS function makes sure the shore power can be plugged in or out, without causing any interruptions to the consumers thanks to seamless switching in under 20 micro-seconds. Charging of the service and starter battery is done by the built-in charger, which can charge both with individual charge profiles. The wide range of Multiplus models makes it easy to efficiently match the right inverter to the requirements. Compact models are available when space restrictions apply.
    Inverters convert DC power into AC power. Inverters should be sized to handle the average AC load continuously and should match the expected peak power current of the simultaneous AC loads. Bekijk al onze omvormer/acculaders

    De keuze van professionals

    Multiplus Compact 12/2000/80: based on the vehicles operating voltage of 12V, this 2000 VA inverter powers the loads and their peak power easily. The 80 Amps of charge current will fast charge a Lithium service battery bank while a second output takes care of the starter battery. In case of Lead-acid batteries, the charge current can be reduced to match the size of the battery bank. The compact housing saves much needed cabin space.
    Systems with a higher daily energy consumption, or that are based on lead-acid service batteries will require more shore power time to get fully charged. Due to the charge characteristics of lead-acid it will take more time, which translates in the need for more shore power time when parked.
  • 02

    Lithium of loodzuur service accu in welke maat?

    Victron Energy offers multiple options for the service battery, but the main choice is between lead-acid and lithium which mainly depends on the expectations of the performance, cost-per-cycle and physical aspects (size/weight). The choice in battery technology also leads to different consequences for the other system components that are directly attached to (or manage) the batteries.

    In general, use lithium when the daily power demand is extremely intense, when superfast charging is essential or when there are weight or space limitations. Lithium also has a lower cost per cycle. Lead-acid has a lower up-front cost and is perfect for regular, less demanding power profiles and when weight and space are not an issue. The above probably cuts 45 years of battery development know-how a bit short, for more info check our deep dive.

    Victron Energy biedt accu’s van uitzonderlijke kwaliteit met hoogwaardige eigenschappen die grondig getest zijn. Onze informatiebladen geven een goed beeld van de prestaties en de verwachte levenscycli, wat betekent dat u niet voor verrassingen op het gebied van investeringen komt te staan. Onze brede keuze aan accu's
    Keuzes, keuzes... Lithium of loodzuur?

    De keuze van professionals

    Lithium 12,8V Smart 200Ah. This extremely compact and light box is packed with a staggering 2560 kWh of energy, more than enough to supply all the expected loads, while keeping 20% in reserve for life cycle reasons. Due to its limited shape and weight, all the space can be dedicated to helping those in need. Thanks to Lithium's fast charging characteristics, the battery can be fully charged by the engines alternator in just 2,5 hours (the 130 Amp alternator will safely charge with 65 Amps per hour, calculating with ±50% of the rated capacity). When shore power is needed, the Multiplus 80 Amps charger is able to provide a full charge within ±2 hours.

    2x 12 Volt Deep Cycle AGM 165Ah. Countless ambulances have been powered by lead-acid batteries and still are, which makes it the default option. While they offer a lower up-front cost, the number of charge cycles will be less, which means that Lithium has a lower cost per cycle and is therefore a better and cheaper alternative in the long run. If there are fewer weight and space restrictions, two parallel connected 12 Volt Deep Cycle AGM 165Ah batteries can weigh in to power the loads problem free. Charging the batteries will be slower, creating a bigger dependency on shore power charging, compared to Lithium. The DC-DC charger, which is connected to the smart alternator, will charge 50% discharged service batteries full in ±5-7 hours. When connected to shore power, the Multiplus charges the batteries overnight.
    As a rule of thumb for sizing the batteries, we calculate with 2x the daily energy consumption for lead-acid batteries because of their 50% safe discharge capacity and keep roughly 20% in reserve for Lithium batteries. Select the nearest model from our range and round up the amps to be sure.
  • 03

    Veilig combineren van (lithium) service accu's met (smart) dynamo's en start accu's.

    Master all challenges that come along by combining (smart) alternators, starter and service batteries (lithium or lead-acid) with our wide range of DC-DC chargers, battery combiners or Smart BMS products. Our solutions are specially designed for vehicles and make sure both lead-acid and lithium service batteries can be properly (dis)charged, without damaging the smart alternator or the batteries.
    De juiste oplossing hangt voornamelijk af van de combinatie van de dynamo('s) (smart of conventioneel) en het type service accu (loodzuur of lithium) en nog andere factoren. Vraag gerust om advies aan de Victron Energy installateur. Vraag de installateur in de buurt

    De keuze van professionals

    Lithium: Battery Management System BMS 12/200: For Lithium based 12V power systems with a load up to 200A, this compact and robust solution is the perfect choice. The device provides many functions: a ‘Battery Management system', ‘Current Limiter', ‘Battery Combiner' and ‘BatteryProtect' in one. The Battery Management system function manages and charges the Lithium battery properly and fast. The Current Limiter function limits the charge current to the safe zone of the alternator output specifications, to prevent the alternator from overheating or early wear. The Battery Combiner function safely combines the house- and starter battery. The BatteryProtect function will protect the house battery from excessive discharge. The BMS 12/200 combines all these functionalities in one which makes it the perfect solution for vehicles.
    Let op dat DC gebruikers geïsoleerd opgesteld moeten worden omdat het BMS 12/200 met - min verbonden is en dus met het chassis.
    Lead-acid: Orion-Tr Smart 12/12-30 & Smart BatteryProtect 220A: This range of professional Orion ‘Battery-to-Battery' DC-DC chargers is designed to safely connect any size 12V alternator (smart or conventional) and starter battery to any type of service battery. The 12/12-30 will request a 30 Amps/h charge current from the smart alternator, which will otherwise not deliver a continuous current which is high enough for charging (this is why a Cyrix-ct battery combiner won't work with a smart alternator).
    The Smart BatteryProtect 220A will protect the service battery from excessive discharge by the (DC) loads, which should be sized in accordance with the maximum expected load current. Engage and disengage levels can be set via the VictronConnect App.
  • 04

    Hoe wordt in noodgevallen de motor gestart vanaf de serviceaccu?

    In a rare case where the starter battery runs flat, an additional Cyrix-ct acts as an emergency relay between the service battery and the start battery, so the engine can be started by pressing a button next to the steering wheel, which activates the remote on/off switch. In this case the Cyrix-ct 230A has a cranking rating of 500A (for 5 seconds). Please note that this Cyrix-ct only facilitates the emergency start, charging the service battery from the starter battery is handled differently: see safely combining alternators with batteries.

Professionele uitdagingen?
Vraag de Victron Professional in de buurt.

The number of options for each component are quite extensive. This is why we train Victron Energy Professionals to perfectly translate your exact needs into robust solutions. They feel a great responsibility to always advise the right solution (even when this may sometimes go against what clients have in mind initially). Everything to keep you satisfied and your investments secure for years to come.
Always feel free to ask your local Victron Energy Professional
Een Victron Professional naast een auto met Victron apparatuur

Uw browser lijkt de nieuwste technologieën niet te ondersteunen. Overweeg het gebruik van een modernere browser om deze sectie correct te zien.

Schema

voor een op lithium en loodzuuraccu gebaseerd systeem

Hoe worden de systeemontwerp overwegingen in een robuust systeem vertaald?

Serviceaccu
Laden

AC apparatuur (enkel fase)

Elk ‘huishoudelijk’ apparaat of ‘zwaar gereedschap’ dat in een thuis- of werkomgeving te vinden is, kan ook in onafhankelijke energiesystemen gevonden worden. Al deze apparaten hebben wisselstroom nodig om te kunnen functioneren (230 V of 110 V).

Some of these devices such as computers can be sensitive to the quality of the inverted power (bad shore- or generator AC-input power can influence this quality negatively). Motor driven or heat generating equipment may require a high start-up current. All our inverters produce a pure sine wave, even when the AC input quality is less good, ensuring that sensitive loads can be powered and enjoy a peak-power of generally 2x of the inverters rated capacity to power even the heaviest of loads, or basically any load, problem free.

Voorbeelden van AC apparatuur

  • Heavy duty tools such as a drilling machine or a jigsaw
  • Computers
  • Phone chargers
  • Fridge and freezer
  • Lights
  • Coffee machine
  • Microwave
  • or basically any AC powered device you can think of.

Alternators

Vehicles and boats are equipped with engine(s) that generate the power to move, but also generate electrical energy through alternators. Alternators generate electrical energy with a direct current (DC) from mechanical energy, which is used to store the energy in the battery bank or power DC-equipment directly.

Small engines usually have small alternators, larger engines usually have larger alternators, sometimes they are even equipped with (extra) high-output alternators to increase the output. Vehicles, especially with Euro 4/5 engines, may come with smart (variable voltage) alternators, controlling the output based on vehicle operating conditions. This renders it unsuccessful at charging a secondary battery system to a usable level. Lithium service batteries may put a heavy load on the engine’s alternator, which probably needs to be protected from overheating or early wear.

Whatever your engine’s alternator, or service battery type, Victron Energy offers a wide range of solutions to safely connect any alternator to any battery bank, without damaging the smart alternator or batteries. Please check our datasheets for more information. Also, check your manufacturer's documentation to see what output your alternator can provide. With Lithium service banks and conventional or smart alternators we recommend to calculate with 50% the alternator output spec, to not overload the alternator.

Zie al onze DC-DC laders Bekijk alle accuscheiders Zie al onze (Smart) BMS mogelijkheden

Battery Combiners

Accuscheiders worden toegepast om startaccu en serviceaccu op een veilige manier parallel aan te sluiten.
The Battery Combiner will allow the service battery to be charged when the engine is running (at a pre-set voltage). The service battery will be disconnected from the starter battery when the voltage decreases below a float level, preventing it from being drained by loads running off the service battery. Victron Energy offers multiple models and sizes of Battery Combiners, it depends on your type of system which is best to select.

Nood start: in geval van een startaccu probleem, kan met sommige accuscheiders met de service accu gestart worden, zie de informatiebladen voor meer informatie. Project-Id-Version: Victron Energy website Language: nl MIME-Version: 1.0 Content-Type: text/plain; charset=UTF-8 Content-Transfer-Encoding: 8bit X-Generator: POEditor.com

As an alternative to using Battery Combiners, other options may include more control and configuration options, especially to protect non-regulated alternators from overheating and Lithium batteries from excessive (dis)charging. For combining lead-acid batteries, DC-DC chargers can be considered. For Lithium service batteries options include DC-DC chargers, special Lithium Battery Combiners (which can be connected to a BMS) or all-in-one Smart BMS products.

Bekijk alle accuscheiders Bekijk onze DC-DC laders Bekijk alle (smart)BMS mogelijkheden

Battery Management Systems

Battery management systems take excellent care of Lithium batteries, protecting the individual cells of LiFePO4 batteries against over voltage, under voltage and over temperature and will shut down or reduce charging (VE.Bus products only) or disconnect the loads when this occurs.

Victron Energy offers several BMS options, in general the VE.Bus BMS and smallBMS signal separate devices to disconnect the charging (Cyrix-Li, DC-DC chargers) or disconnect the loads (BatteryProtect), the other (Smart) BMS versions are designed for vehicles or boats and offer more ‘all-in one’ functionalities.

Zie al onze Battery Management Systems

Accumonitor

Een accumonitor is als een brandstofmeter voor de accu. Het registreert hoeveel stroom verbruikt en geladen is. De accumonitor berekent de laadstatus, de overgebleven capaciteit en de tijd totdat de accu leeg is. De accuspanning geeft geen nauwkeurige indicatie over de laadtoestand (zeker niet onder belasting). Een accumonitor doet dat wél.

Victron Energy battery monitors keep track of historical data, like the number of charging cycles, deepest discharge, highest voltage, lowest voltage and so on. It will alert you to critical conditions such as low voltage or low charge and can even shut down the entire power supply to avoid expensive battery damage, or start a generator.

Victron heeft accumonitors met of zonder scherm, met Smart versies kunt u gedetailleerde gegevens volgen en instellingen aanpassen in de gratis VictronConnect app. Bekijk al onze Accumonitors

BatteryProtect

The BatteryProtect disconnects the battery from non-essential loads before it is below a pre-set level (a complete discharge would damage the battery) or before it has insufficient power left to crank an engine.

There is more to a Victron Energy BatteryProtect. Built-in shutdown delays ensure vital electronics aren’t disconnected in error, i.e. when starting an engine causes a short drop in voltage. It will also automatically reconnect everything when the battery is sufficiently recharged.
De BatteryProtect heeft een Remote schakelaar, zodat hij via een BMS of door een schakelaar aan/uit gezet kan worden. De Smart versie is te programmeren met de VictronConnect app.

Zie onze BatteryProtect modellen

Cerbo GX

The Victron Energy Cerbo GX is the communication-centre of your systems installation, allowing you to always have perfect control from wherever you are and maximises its performance. The optional GX Touch 50 is a companion to the Cerbo GX, it’s five inch touch screen display gives an instant overview of your system and allows you to adjust settings in the blink of an eye.

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or even set quiet periods to avoid starting the generator in the middle of the night. Change any setting to optimise the system, follow up on alerts, perform diagnostic checks and resolve challenges remotely with the free Victron Remote Management (VRM) portal.

The Cerbo GX is an easy to use visual system and turns any power challenge into an effortless experience. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the optional GX Touch 50 screen, a Multi Functional Display or our VictronConnect app thanks to its added Bluetooth capability.

DC-DC Acculaders

DC-DC converters, or battery-to-battery chargers (converters with built-in charge algorithms) are used in dual battery systems, where the (smart) alternator and the start battery are combined with the service battery (of equal or different voltages) to charge it. They can also be used to charge applications that have dedicated batteries (eg. bow thrusters), or to power applications that have a voltage different than the service battery bank.

Most DC-DC chargers can be used in 12V or 24V systems and all are suitable for both lead acid and lithium batteries. Some DC-DC charger models can be parallel connected to increase the output current. DC-DC chargers are a perfect and safe solution to charge Lithium battery banks from smart alternators (and lead-acid batteries for that matter).

Lithium accu's laden met de dynamo
Most alternators cannot be directly connected to lithium batteries. A lithium battery will draw more current than the alternator can supply, which may result in permanent alternator damage. To not damage the alternator, current limiting is one of the options to stay within the safe zone of the alternator.

Victron heeft meerdere oplossingen voor dit probleem, één daarvan zijn de DC-DC omvormers:

  • DC-DC converters act as a current limiter between the alternator and the battery: the battery can be safely charged without blowing up the alternator.
  • Victron also offers alternative solutions for dual battery systems powered by alternators. Some (smart) BMS products physically limit the current drawn from the alternator, in other systems, battery combiners might be a solid option. See the datasheets for more info.
Bekijk onze DC-DC omvormers

DC Elektronica

DC-equipment is designed to work directly with the power coming out of the battery bank (Direct Current). Especially vehicles and boats can have (a lot of) DC equipment on board (such as control panels, lights, navigation equipment, auto pilot, depth sounders, etc).

Sommige kleinere off-grid systemen kunnen alleen op DC werken, met 12V lampen, TV's of koelkasten. Grotere systemen combineren AC en DC gebruikers.

In elk geval is het belangrijk de accu te beschermen tegen te diepe ontlading hiervoor heeft Victron de BatteryProtect.

GX Touch

The Victron Energy Cerbo GX is the communication-centre of your systems installation, allowing you to always have perfect control from wherever you are and maximises its performance. The optional GX Touch 50 is a companion to the Cerbo GX, it’s five inch touch screen display gives an instant overview of your system and allows you to adjust settings in the blink of an eye.

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or even set quiet periods to avoid starting the generator in the middle of the night. Change any setting to optimise the system, follow up on alerts, perform diagnostic checks and resolve challenges remotely with the free Victron Remote Management (VRM) portal.

The Cerbo GX is an easy to use visual system and turns any power challenge into an effortless experience. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the optional GX Touch 50 screen, a Multi Functional Display or our VictronConnect app thanks to its added Bluetooth capability.

Omvormer/Acculaders

Inverter/chargers convert DC power from the batteries to AC power, safely powering appliances or heavy duty tools with 230V (or 110V in other markets). Their built in charger uses grid, shore or generator power, using the best adaptive charge algorithms for your batteries of any kind.

All Victron Energy inverter/chargers are developed for professional duty, enjoy a reputation of extreme resilience and are built on decades of field experience in the most demanding conditions. Our extremely resilient inverter/chargers are the best choice when both inverting and charging from AC inputs (such as shore power or generators) are required. Their connectivity options and depth of configuration settings allow the most sophisticated of challenges to be mastered.

De Victron Energy omvormers/acculaders hebben vele voortreffelijke mogelijkheden:

  • PowerControl: automatische besturing voor acculaden om overladen door aggregaat of walstroom te voorkomen.
  • PowerAssist: gebruikt de accu als een buffer om de walstroom tijdens piekvermogen afname te ondersteunen.
  • Perfect power: sensitive devices run flawlessly on the pure sine wave technology, even when AC input sources aren’t producing a clean AC current, the Victron inverter/charger smooths out these issues, turning bad power into perfect power.
  • UPS functie: voor het zonder problemen aansluiten of afsluiten van de walstroom dankzij naadloos overschakelen.
  • Hoge piekstroom: gebruik probleemloos gemotoriseerde apparatuur zonder oververhitting en voorzien elke belasting probleemloos van stroom.
  • Laag eigen verbruik.
  • De ingebouwde lader heeft meerdere adaptieve laad algoritmes om start en service accu's te laden, met een lange levensduur als resultaat.
  • Bij modellen met 2 AC ingangen kan stroom van meer stroombronnen komen, zoals wal-, net- of aggregaat stroom.

Our wide range of models makes it easy to efficiently match the right inverter/charger to the requirements. Compact models are available when space restrictions apply. Larger models can power industrial appliances and virtually unlimited power can be provided by Parallel or 3-phase operation. Bekijk al onze omvormer/acculaders

Service Batteries

The service battery stores power for the system's consumers, providing autonomous power especially for moments when input power sources aren’t (fully) available.

Victron Energy offers several battery technologies, all designed for professional performance, reliability and long service life in the most demanding environments. They come with a 2 year worldwide warranty and our datasheets offer a fair picture of the performance and expected life cycles, meaning no investment surprises along the way.

Terwijl er meerdere technologieën zijn om uit te kiezen, is de belangrijkste keuze tussen loodzuur of lithium wat hoofdzakelijk afhangt van de verwachtingen van prestaties, kosten per cyclus, en de fysieke aspecten (grootte/gewicht).

  • Kies loodzuur als:
  • Wordt af en toe gebruikt
  • Lagere aanschaf kosten
  • Gewicht en ruimte zijn geen probleem
  • Normaal opladen
  • Kies Lithium als:
  • Gebruik dagelijks
  • Lagere kosten per cyclus
  • Gewicht en ruimte overwegingen
  • Snelladen

Service Batteries

The service battery stores power for the system's consumers, providing autonomous power especially for moments when input power sources aren’t (fully) available.

Victron Energy offers several battery technologies, all designed for professional performance, reliability and long service life in the most demanding environments. They come with a 2 year worldwide warranty and our datasheets offer a fair picture of the performance and expected life cycles, meaning no investment surprises along the way.

Terwijl er meerdere technologieën zijn om uit te kiezen, is de belangrijkste keuze tussen loodzuur of lithium wat hoofdzakelijk afhangt van de verwachtingen van prestaties, kosten per cyclus, en de fysieke aspecten (grootte/gewicht).

  • Kies loodzuur als:
  • Wordt af en toe gebruikt
  • Lagere aanschaf kosten
  • Gewicht en ruimte zijn geen probleem
  • Normaal opladen
  • Kies Lithium als:
  • Gebruik dagelijks
  • Lagere kosten per cyclus
  • Gewicht en ruimte overwegingen
  • Snelladen

Walstroom

Er wordt walstroom gebruikt om accu's te laden en/of voor grote AC verbruikers.
Sometimes shore power is less than perfect. You might run into voltage drops, or there could also be power surges, which could harm sensitive equipment on board. Victron Energy inverters smooth out these problems and turn bad power into perfect power.

Often shore power is limited in how much power you can draw, i.e. just 10 Amps, without any higher rated points available. Victron Energy inverter/chargers allow you to set a maximum shore power current and still turn on higher rated equipment without blowing a fuse: thanks to Victron Energy PowerAssist, power from the batteries is added seamlessly to the AC input, automatically bridging the gap between supply and demand.

Startaccu's

Starter batteries are needed to start your engine(s). These batteries are engineered to deal with a large discharge current and enjoy a different technology compared to service batteries. To avoid accidental draining of the starter battery, it should always be isolated from the service batteries. Victron Energy offers multiple solutions for different system types.

Victron Energy offers several Battery Combiners. More comprehensive ways to safely connect the starter- and service battery are also available, including connecting a Battery Combiner to a BMS, all-in-one Smart BMS products or DC-DC chargers. These options may offer more control and configuration options, especially to protect non-regulated alternators from overheating and Lithium batteries from excessive (dis)charging.

Bekijk alle accuscheiders Zie al onze DC-DC laders Zie al onze (Smart) BMS mogelijkheden

VictronConnect

All Victron Energy smart products can be monitored and controlled from the palm of your hand. Just connect the VictronConnect App via Bluetooth and you’ll have direct access to the performance data of your system. You can also easily change settings, turn devices on or off and much more.

Niet-smart apparaten met een VE.Direct poort kunnen smart worden door door het gebruik van een VE.Direct Bluetooth Smart dongle

It is also possible to monitor and control your system remotely. VictronConnect-Remote functionality enables Victron products with a VE.Direct interface to be accessed remotely through a GX product, via the VRM online portal. This powerful feature allows full product configuration and monitoring from practically anywhere in the world using the VictronConnect app. The user interface experience is just like the products were connected locally using Bluetooth or a wired VE.Direct to USB interface.

Zie wat de VictronConnect app kan doen Bekijk onze GX-apparaten
Systeem specificaties
Here is our recommendation for an average size ambulance, both for Lithium and Lead-acid battery based systems.

Overweeg het gebruik van een moderne browser om deze gedetailleerde tabel en de volledige sectie correct te zien.

Energy consumption
Dagelijks energieverbruik:
1800 Wh
Benodigd piekvermogen:
1500 W
Systeem piekvermogen:
4000 W (max)
Max. energieverbruik Lood-zuur:
1980 W
Max. energieverbruik Lithium:
1920 W
Omvormen
Inverter/charger
MultiPlus Compact 12/2000/80
Opslag
Service battery:
Lithium 12,8 V Smart 200Ah of
2x 12 Volt Deep Cycle AGM 165Ah
Voor Lithium accu beveiliging:
Battery Management System BMS 12/200
Dit BMS heeft BatteryProtect functionaliteit ingebouwd en is met de - min verbonden.Belastingen verbonden met de - (min) moeten geïsoleerd opgesteld worden.
For lead-acid:
BatteryProtect 220A
Beschermd de accu tegen te diepe ontlading
Nood start:
Cyrix-ct 230A
Generatie
De service accu met de dynamo laden (zie de uitleg)
Dynamo uitgang:
130 A*
Veilige opbrengst 50%
* Voor specificaties zie gegevensblad van de fabrikant.
Loodzuur laden:
Orion-Tr Smart 12/12-30 geisoleerd of
Cyrix-ct 230A*
** De Cyrix werkt niet met "slimme" dynamo's.
Voor Lithium gebruik:
Battery Management System BMS 12/200
Het BMS bestuurt de accu, de stroombegrenzing beschermt de dynamo. Belastingen verbonden met de - (min) moeten geïsoleerd opgesteld worden.
Bewaking
Accumonitor:
SmartShunt accumonitor 500A of
BMV-712 Smart
Werkt met VictronConnect
Remote bewaking:
Cerbo GX and Cerbo GX Touch
Volledige lijst weergeven Pijl naar beneden
Volledige lijst weergeven Pijl naar beneden

Waarom Victron Energy?

De juiste producten voor het werk

As you are always on the road, you’ll want reliable but cost-effective solutions that power you through the years ahead. It’s important that you can select power supplies that match your exact needs and live up to their spec so they won’t let you down. Victron Energy has a wide range of modular connected products that stay true to their promise. They are Powered by know-how, thanks to 45 years of mastering power challenges with innovation.

Icoon van 45 jaar Victron Energy

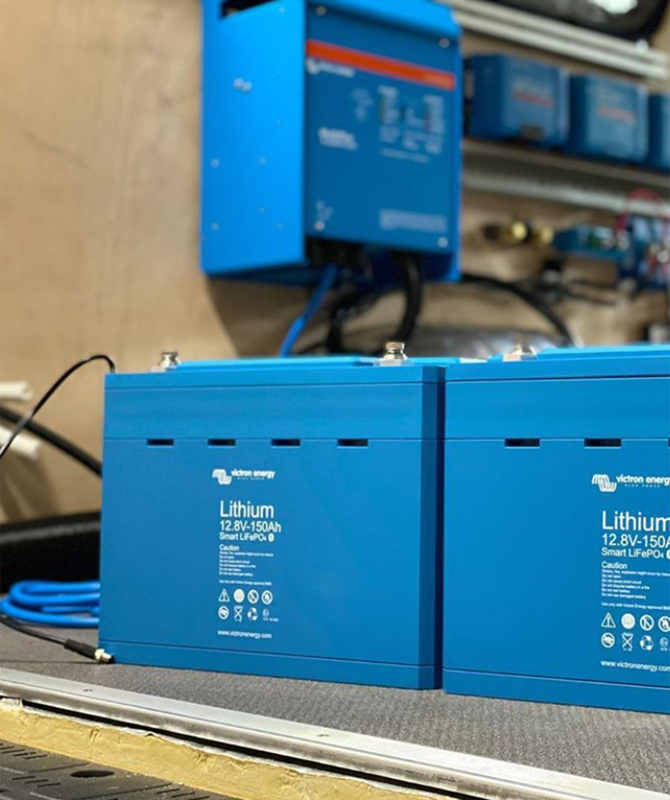

Lithium accu

Waarom Victron Energy?

Altijd aan. Altijd beschikbaar.

Our robust systems have been proven to deliver unequalled reliability time and time again. This is marked by our worldwide market leadership in power supply equipment for Ambulances, this is illustrated by countless stories of 40+ year old Victron Energy inverters still doing what they were built to do.

Ambulance

Waarom Victron Energy?

Betrouwbaarheid zorgt voor een lange levensduur

When making power supply investment decisions, calculations purely based on price can be deceptive. Their true performance and expected service life cycle are equally important. Good thing Victron Energy equipment lives up to their specifications, both in terms of performance and expected life cycle (when used as designed). Our 5 year warranty and fair and fast repair policies mean your investments are protected and under most circumstances, won’t let you down.

jaar garantie

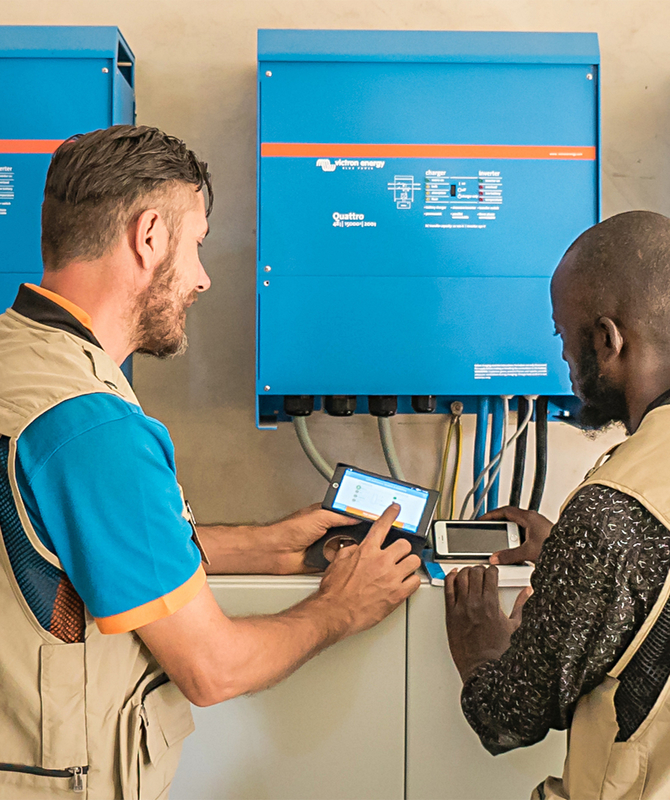

Een Victron professional laat de VictronConnect app zien

Waarom Victron Energy?

Professionele uitdagingen. Geaccepteerd.

Whatever powers your vehicles’ electronics, or toolset you are bringing for the job, Victron Energy has one the widest ranges of power supply equipment in the market to power your works of genius. The advantage of working with just one brand that covers it all means having just one contact for upgrades or resolving any rare issues that may occur. Our global network of Victron Energy Professionals are trained with 45 years of problem solving experience. They can translate your challenges into robust solutions that will keep you satisfied and your investments secure for years to come.

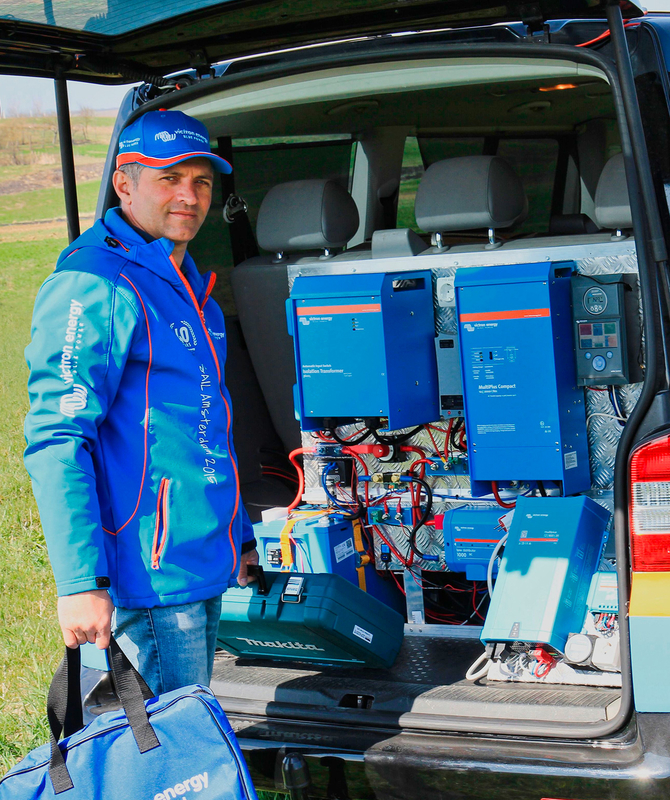

Een Victron professional naast een auto met Victron apparatuur in de achterbak

Waarom Victron Energy?

Professionele Voertuigen
gedreven door kennis

Kijk hoe wij typische voertuig problemen oplossen.
Motor aangedreven door
Pijl symbool
Verken onze expertise in Professionele voertuigen

Uw browser lijkt de nieuwste technologieën, om deze sectie correct te zien, niet te ondersteunen; overweeg het gebruik van een moderne browser.

Smart BMS CL 12/100

Veilig combineren van elke dynamo met Smart Lithium accu's.

Bekijk een gevarieerd aanbod van voertuig systeem schema's
Download ons boekje
Download icon
Gedetaillerde vergelijking

An expert's view: lithium or AGM batteries

Meer weergeven Carret icon
DC-DC Acculader

Professioneel service accu opladen met de Orion-Tr Smart.

Victron Professional

Inschrijven voor het volgende voertuigen webinar of training

Download onze folder

Bekijk al onze Professionele Voertuigen producten en meer voorbeelden.

VictronConnect

Real-time inzicht en volledige controle met onze VictronConnect app

Voorbeeld oplossingen van onze partners

Bezoek ons nieuwsblog

Zoek een lokale dealer

Ons gevestigde wereldwijde netwerk van lokale Victron Professionals is toegewijd u te helpen bij het vinden van een optimale oplossing voor uw uitdaging.

Vertrouw op onze wereldwijde service

Bij Victron vinden we het belangrijk dat klanten snel en vakkundig worden geholpen. Dit is de reden waarom ons wereldwijde netwerk van Victron Professionals de hoogste technische knowhow heeft en zich inzet om zo snel mogelijk reparaties uit te kunnen voeren,

zodat u uw reis kunt beginnen of voortzetten, waar u ook heen gaat.
